Environmental Testing

The Environmental testing simulates the different climatic conditions and mechanical stress that products are exposed to during their lifetime. Environmental testing will expose weaknesses in a product’s design or performance that could occur in service, particularly at extreme levels.

Standards applicable for Environmental Testing are:

  • IEC 60068-2-1: Cold Test
  • IEC 60068-2-1: Dry heat
  • IEC 60068-2-14: Change of temperature.
  • IEC 60068-2-30: Damp heat, cyclic
  • IEC 60068-2-78: Damp heat, steady state
  • IEC 60068-2-11: Salt mist
  • IEC 60068-2-52: Salt mist, cyclic
  • JSS 55555: Methods for Electronic and Electrical Equipment.
  • QM 333: Environmental Testing of Telecommunication Equipment
  • MIL 810 Series: Environmental Engineering Considerations & Laboratory Tests
  • Thermal Shock Test

Specification of Chambers used for Environmental Testing are as below:

EquipmentSpecification

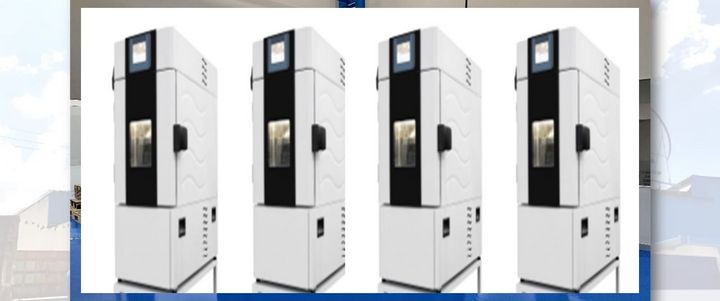

Climatic chamber

Test Space Volume: 1540 Litres approx.

Test Space Dimensions: 1100mm (W) x 1475 mm (D) x 950mm (H)

Temperature Range: -40 °C to +180 °C

Humidity Range: 10% to 98% RH

Temperature change rate (as per IEC 60068-3-5): 2.5 °K/min. (Cooling) 3.5 °K/min. (Heating)

Walk-in Chamber

Test   Space   Dimensions: 3000mm (W) x 3000 mm (D) x 3000 mm (H)

Temperature Range: -40 °C to +100 °C

Humidity Range: 20% to 95%RH

Ramp up rate (Average): 5⁰C/min

Ramp down rate (Average): 3⁰C/min

Thermal Shock chamber

Volume: 120 Litre

Temperature range of the hot chamber +50 °C to +220 °C

Temperature range of the cold chamber -80 °C to +70 °C

Cabinet   dimension: 400mm Wide, 600mm Deep, 330mm high

Transportation time: <10 Sec
